SKU: V11HA79080

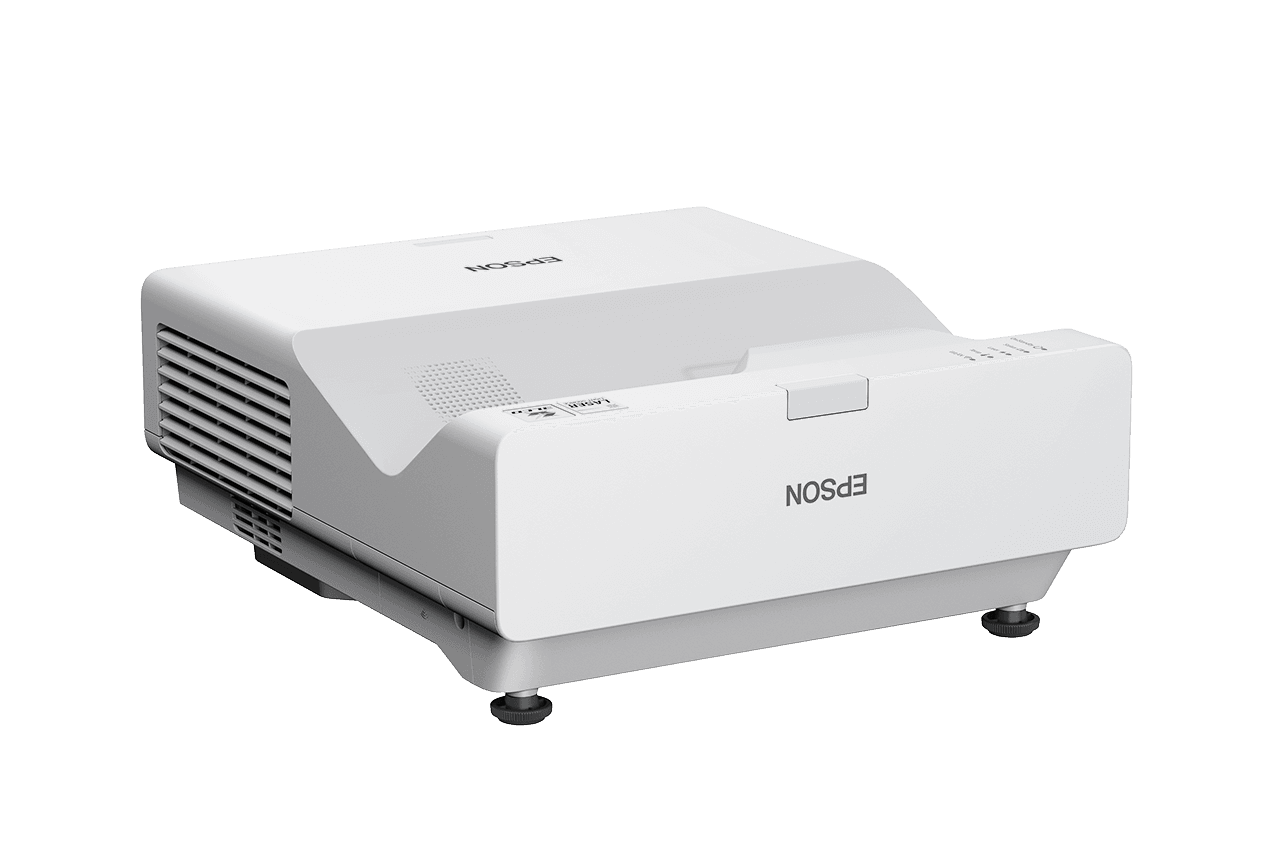

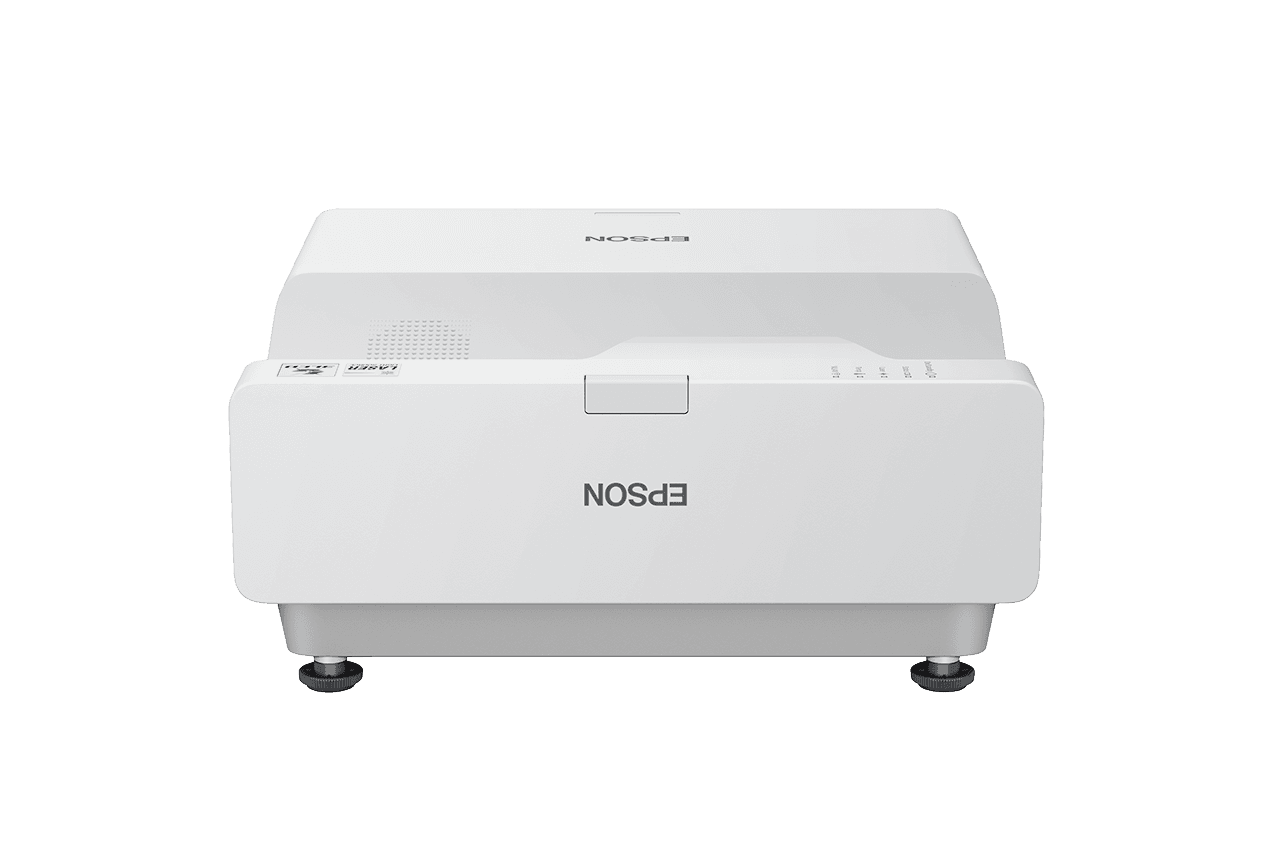

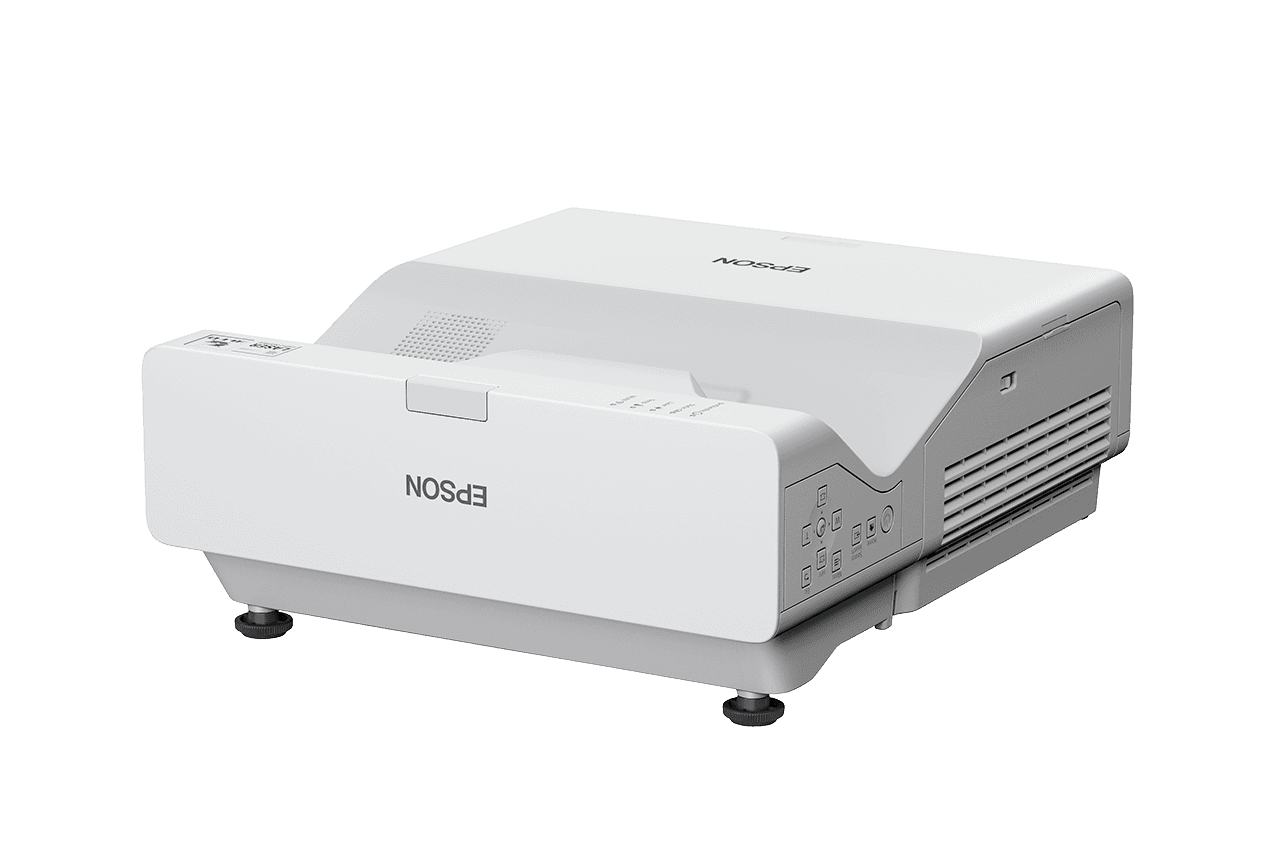

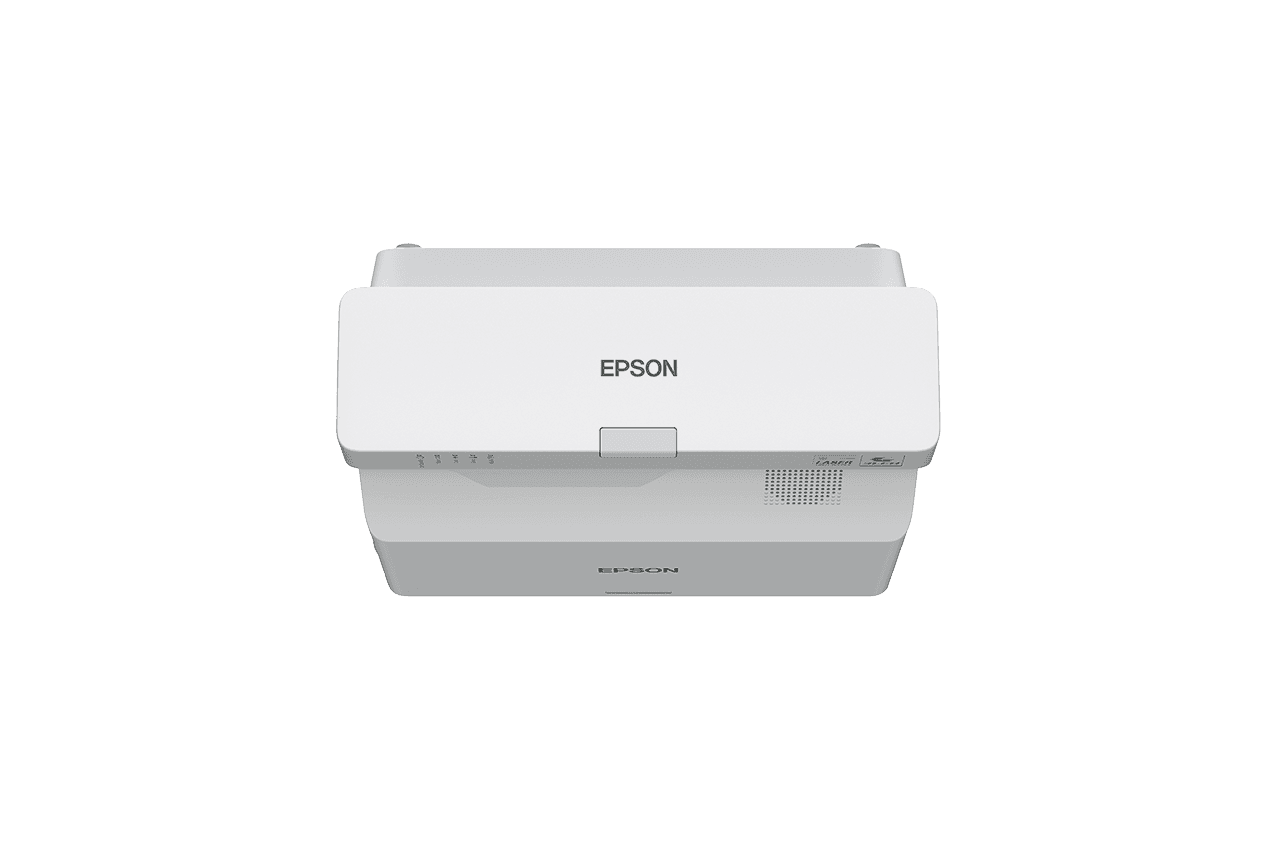

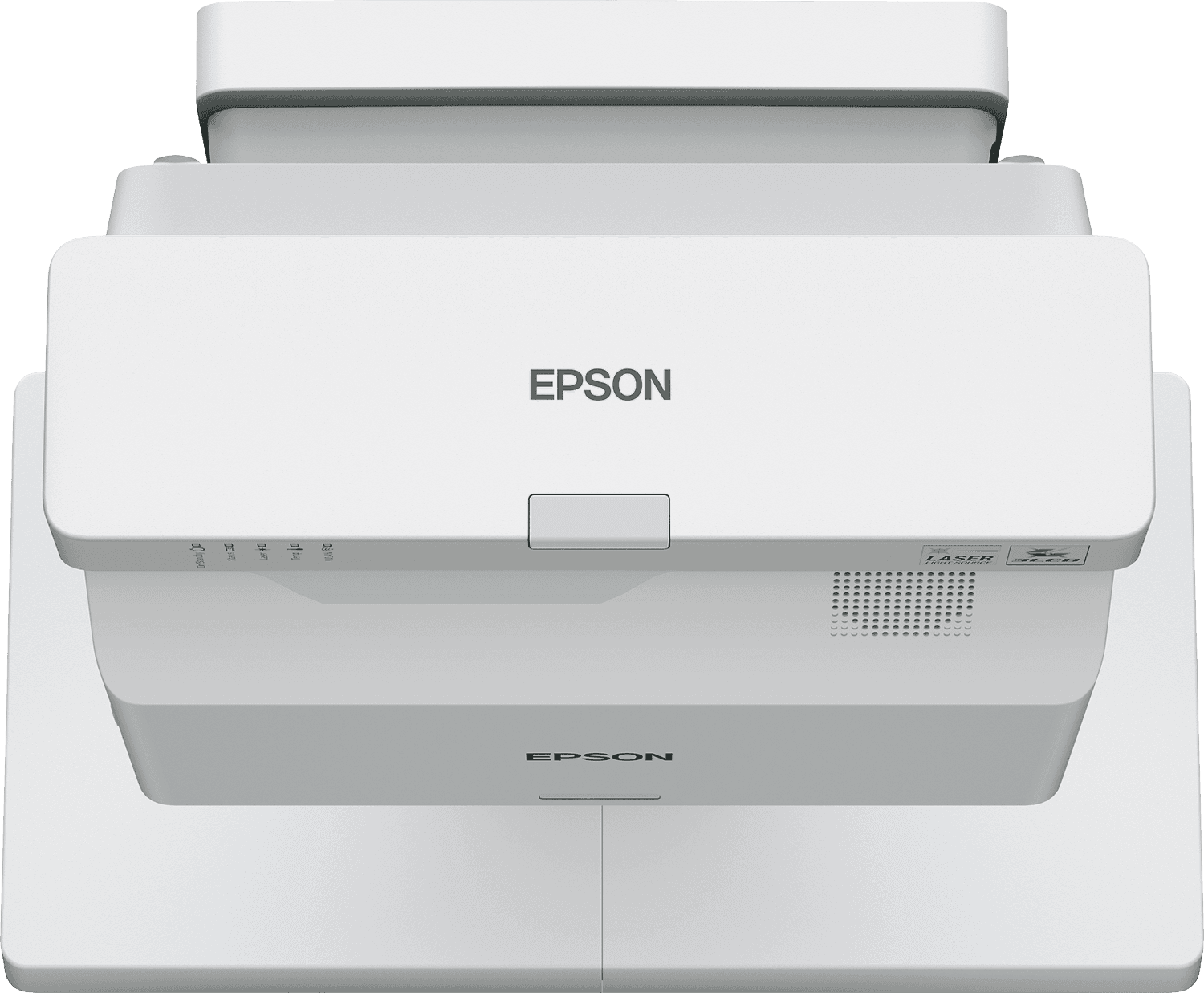

EB-770F

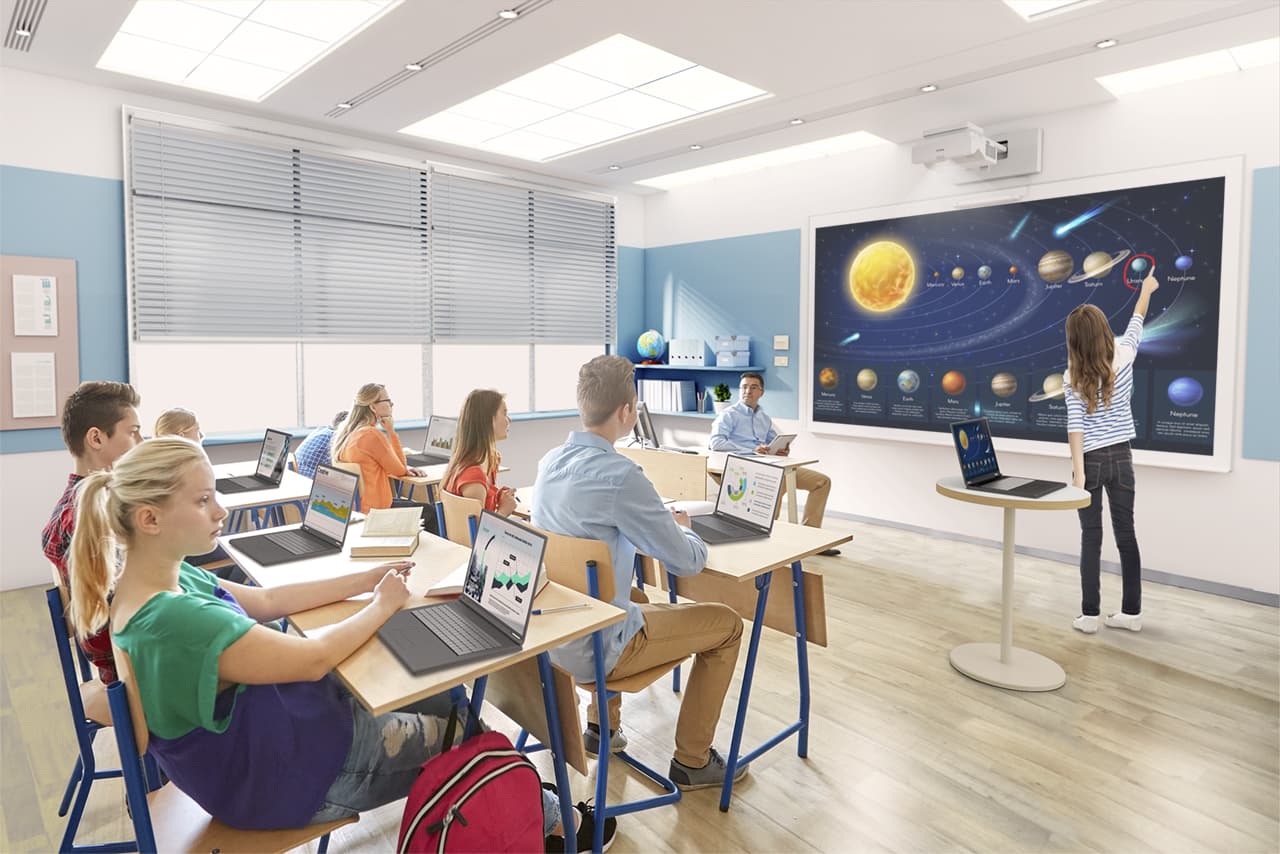

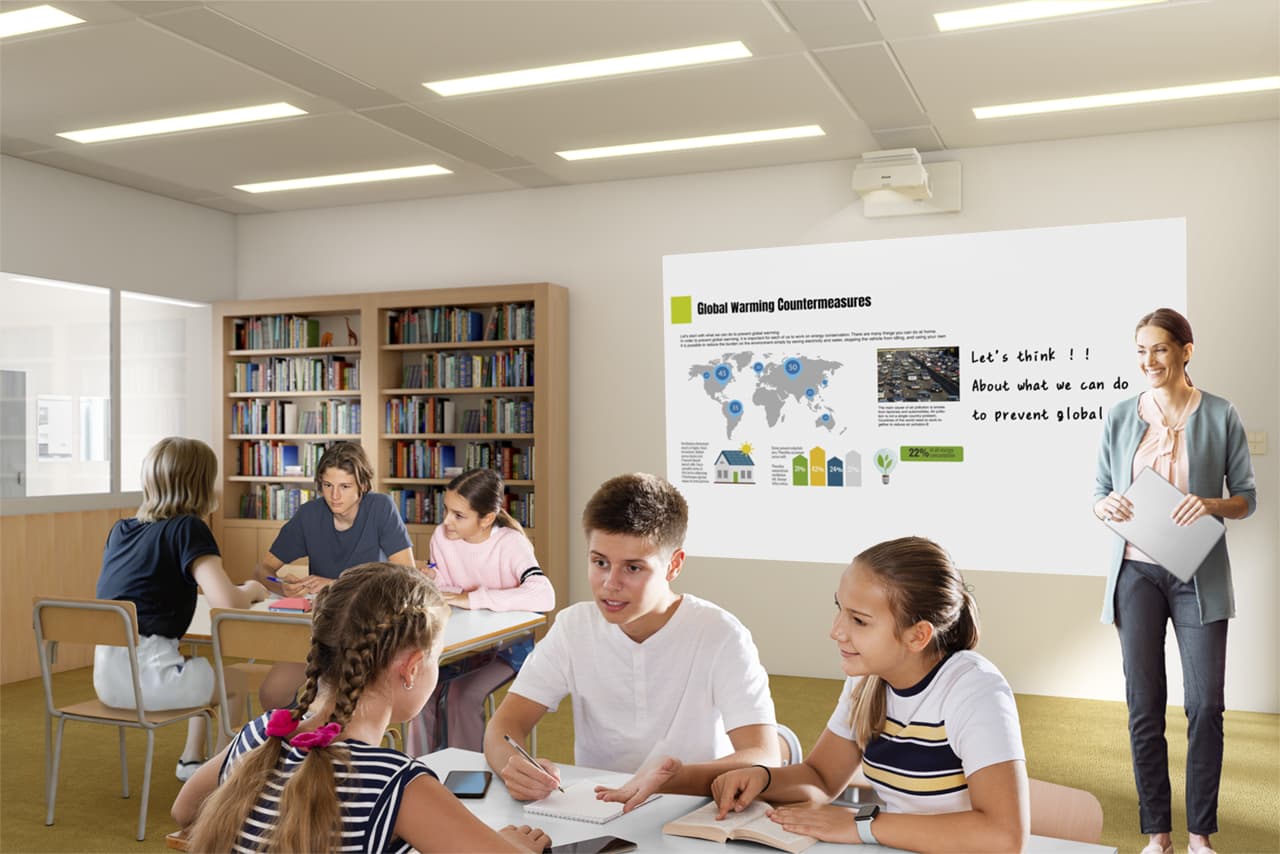

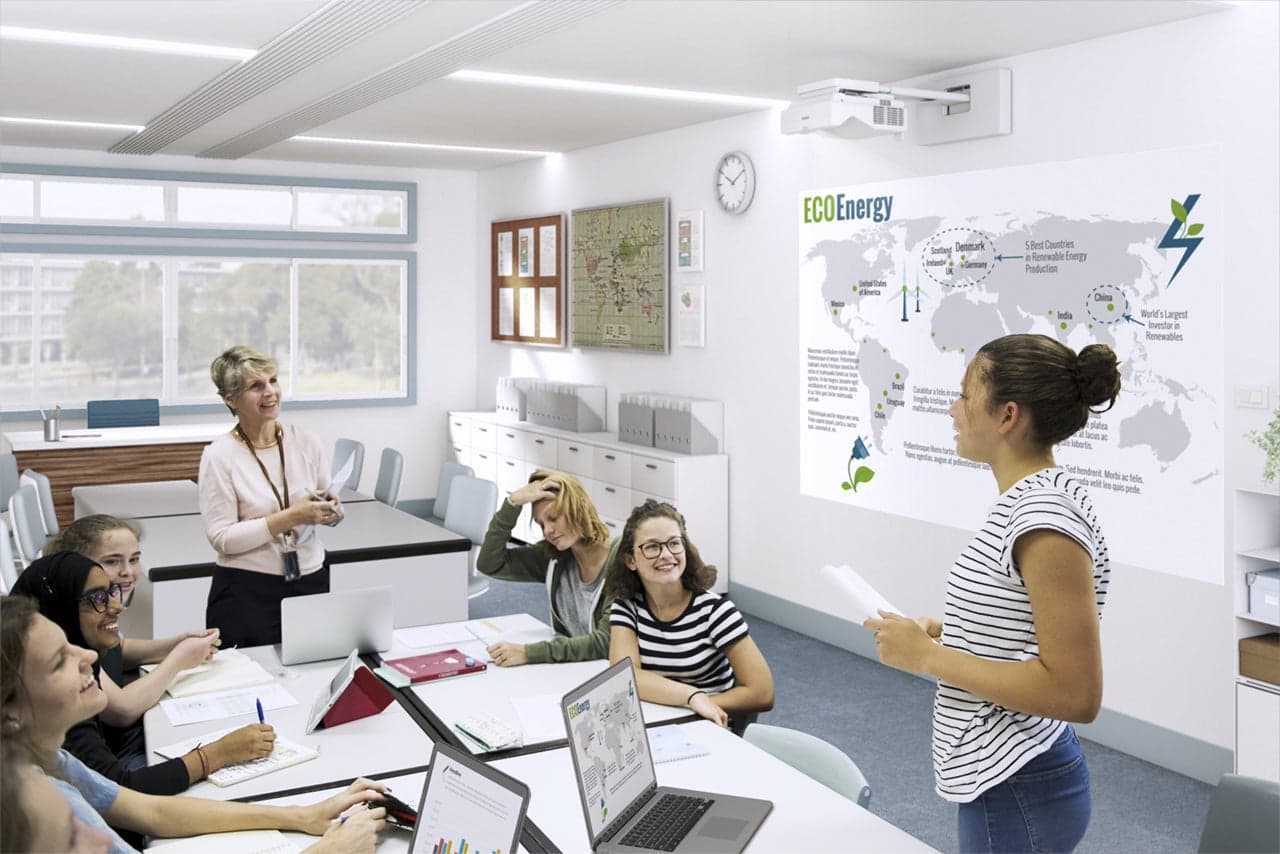

Best for meeting rooms and classrooms. Ultra-short-throw laser display with 4,100 lumens and wireless connectivity.

  • 49-150" FHD UST display
  • 4,100 lumens CLO laser
  • Wireless connectivity

Features

Scalable FHD display for any room

49-150" UST display for unrestricted viewing (no shadows/reflections)

Bright and energy efficient laser

4,100lm CLO with 3LCD technology for brighter colours at only 205W

Effortless connectivity options

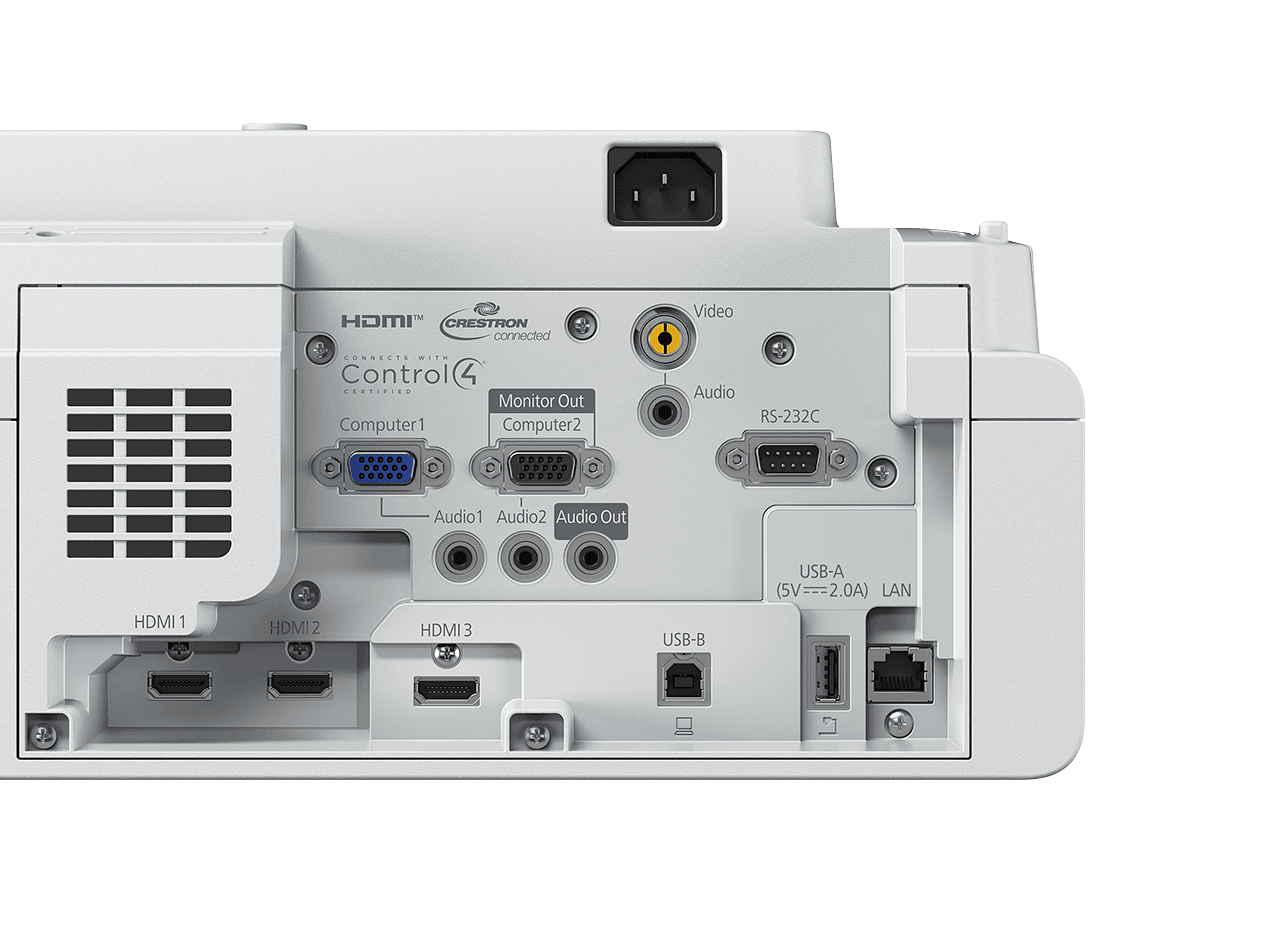

Auto-on, wired / wireless display with USB 2A output for smart sticks

Simple to use and built to last

Virtually maintenance free with 5-year, 12,000hr warranty

Specifications

Projector Colour
White
Heat Dissipation
895 BTUperhour
Loudspeaker
16 W
Noise Level -Normal
37 dB (A)
Noise Level -Economy
27 dB (A)
Options

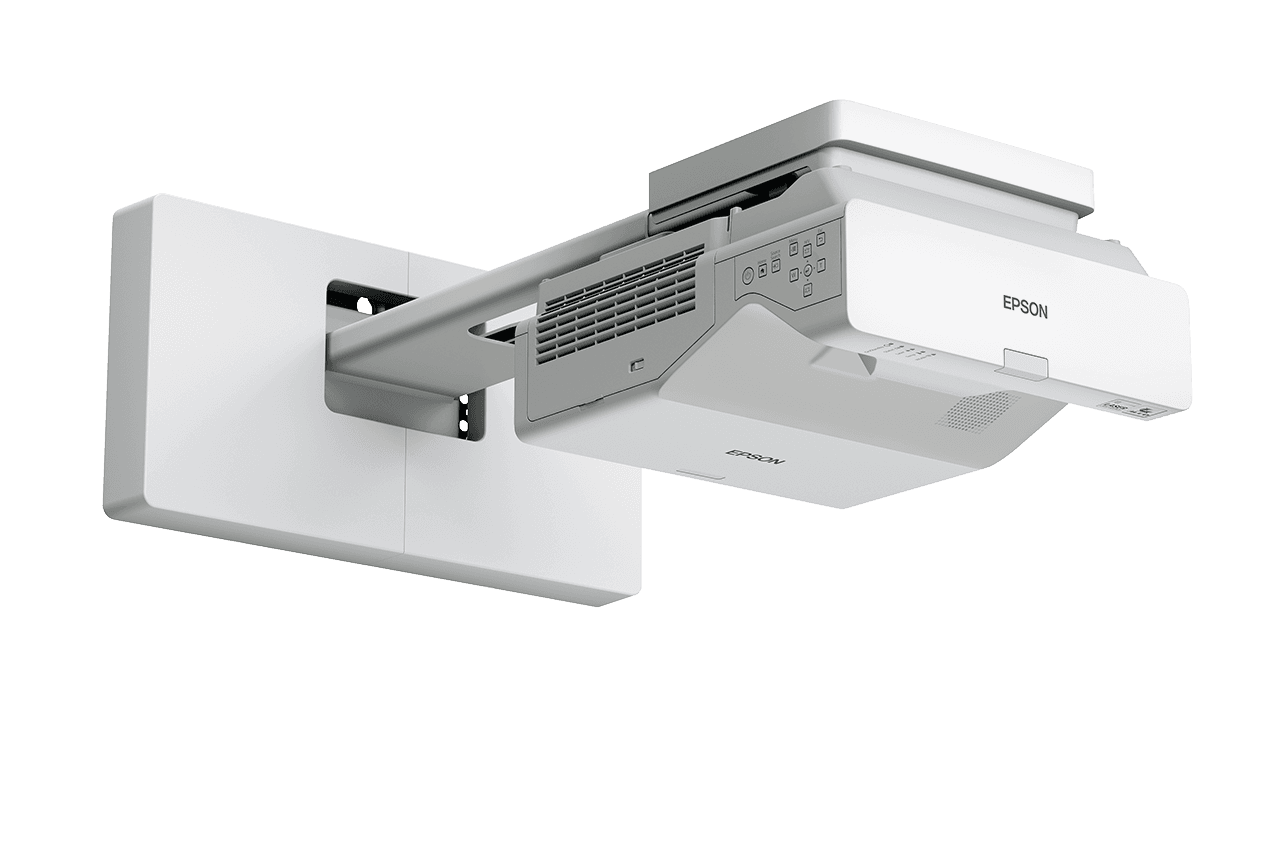

Wall mount
Positioning

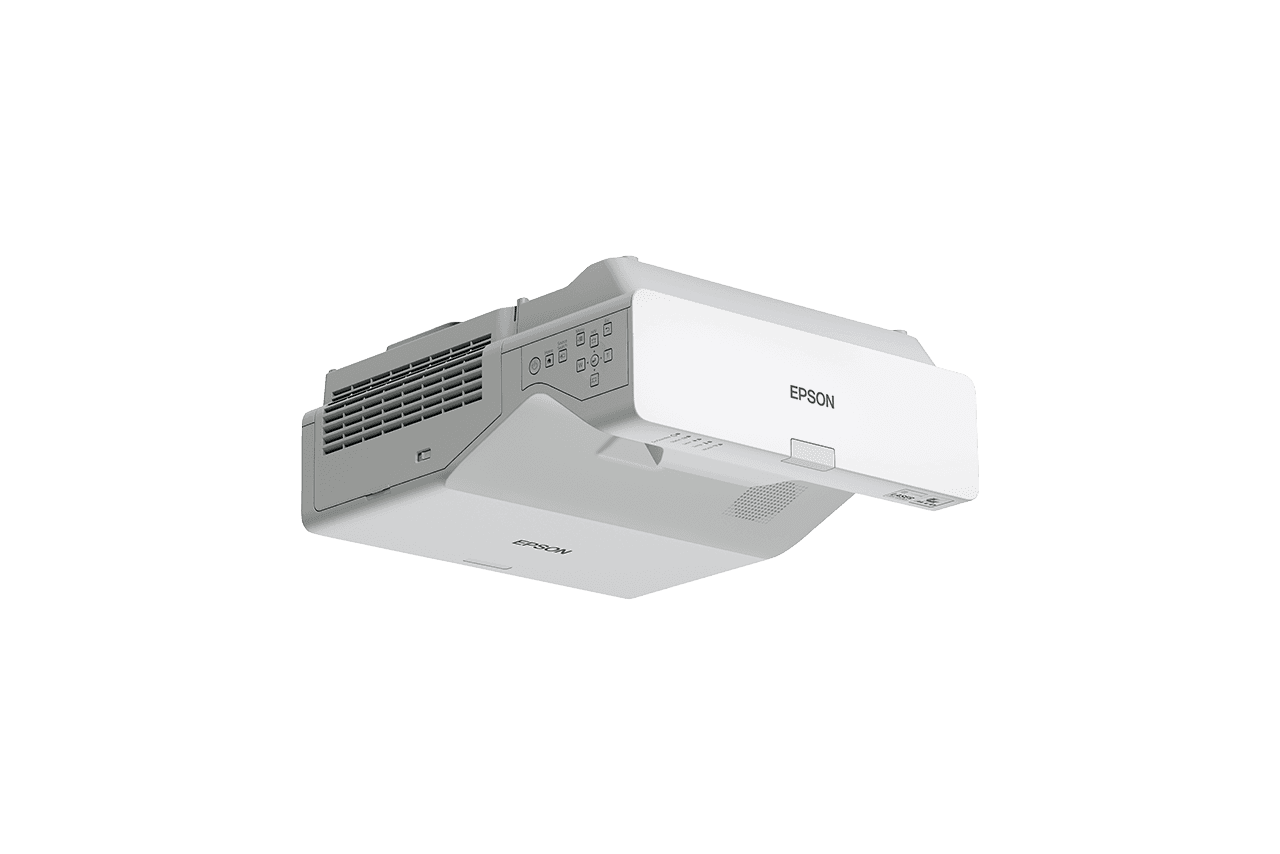

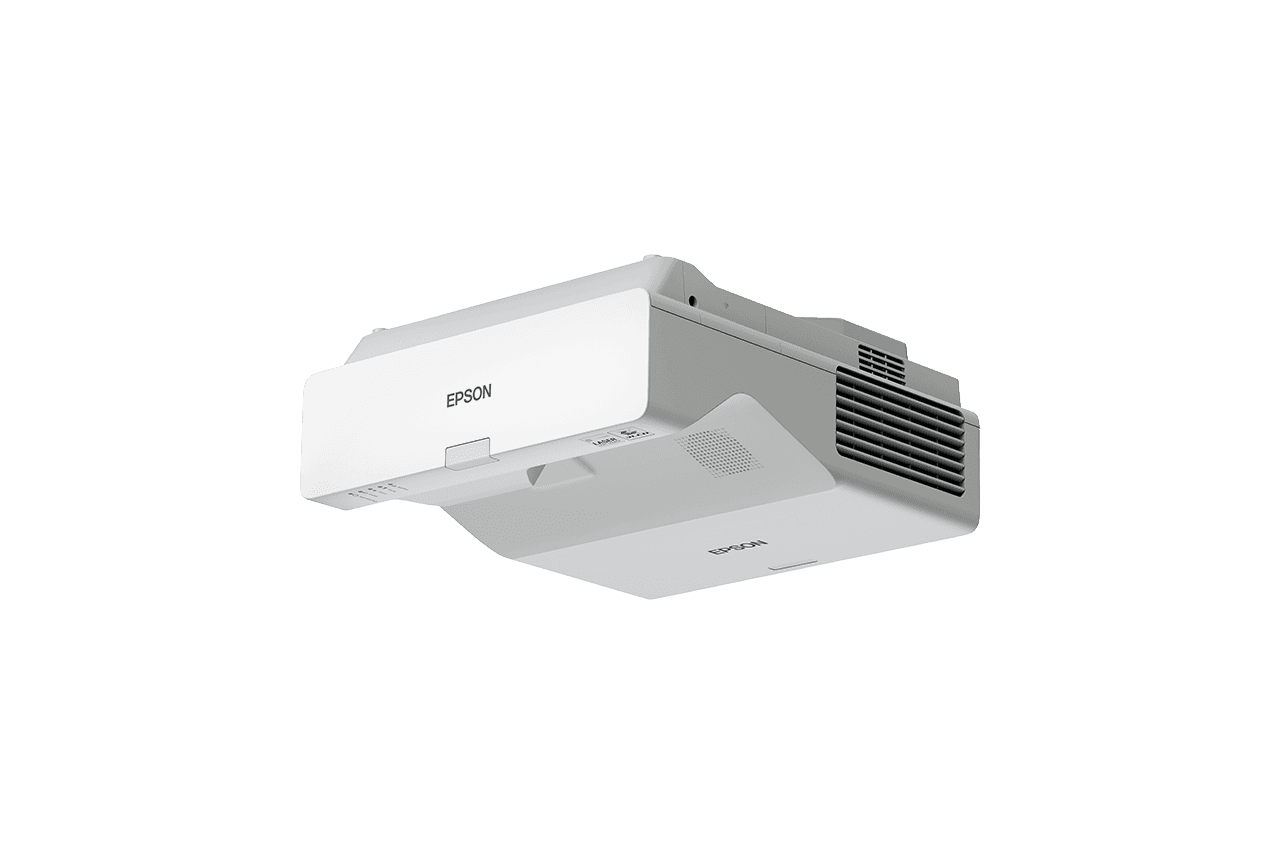

Ceiling Mounted
Power consumption -(Normal On-Mode)
197 W
Power consumption- (Eco On-Mode)
263 W
Power consumption -(Normal Peak-mode)
199 W
Power consumption -(Eco Peak-Mode)
0.5 W
Power consumption - (Energy saving standby)
141 W
Product Dimensions
356 x 395 x 133 mm (Width x Depth x Height)
Product Range
E9
Room Type / Application
Signage / Retail
Single Unit
ZN
Supply Voltage
100 V - 240 V, 50 Hz - 60 Hz
Supported Humidity - Operation (from)
20 %
Supported Humidity - Operation (to)
80 %
Supported Humidity - Storage (from)
10 %
Supported Humidity - Storage (to)
90 %
Supported Temperature - Operation (from)
0
Supported Temperature - Operation (to)
40
Supported Temperature - Storage (from)
-10 °C
Supported Temperature - Storage (to)
60 °C
TCO Certified
Yes
