SKU: V11HB03880

EB-PQ2213B

Best for 4K installations and experiences. Compact 13,000-lumen 4K 3LCD laser projector with Crystal Motion technology.

  • 13,000lm
  • 4K Crystal Motion
  • Flexible installation

Features

Patented 4K and imaging technology

Outstanding 4K image quality delivers superb immersivity

Ultra-compact and lightweight

Small, powerful 13,000lm 4K projector

Cross-platform lens compatibility

Lets you build the optimal projection solution for every requirement

Fit-and-forget reliability

Filter-free design and IP5X dust resistance1

Specifications

Projector Colour
Black
Heat Dissipation
3145 BTUperhour
Noise Level -Normal
37 dB (A)
Noise Level -Economy
34 dB (A)
Noise Level - Eco2
0
Options

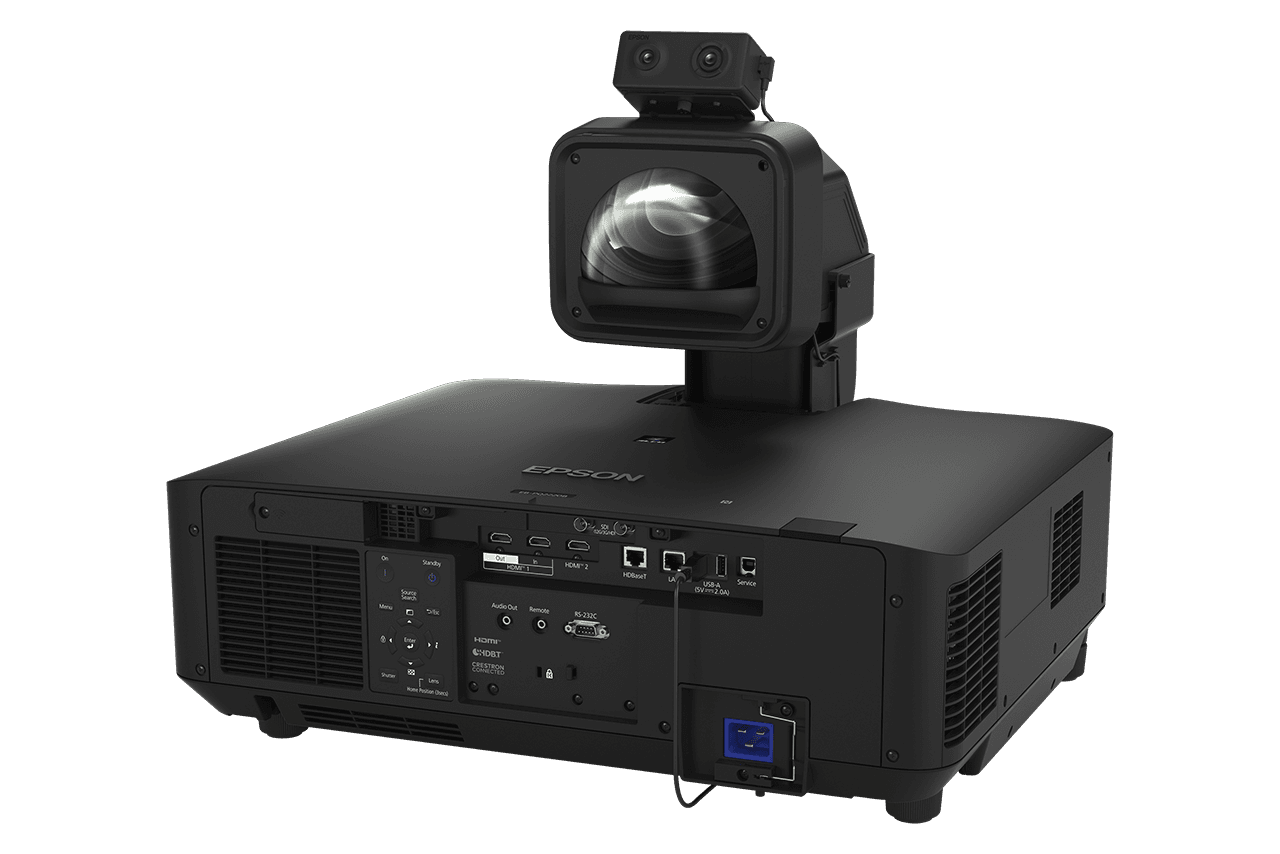

Camera module
Positioning
Ceiling Mounted
Power consumption -(Normal On-Mode)
809 W
Power consumption- (Eco On-Mode)
925 W
Power consumption -(Normal Peak-mode)
666 W
Power consumption -(Eco Peak-Mode)
0.5 W
Product Dimensions
586 x 492 x 218 mm (Width x Depth x Height)
Product Range
PQ
Room Type / Application
Large Meeting Room / Auditorium
Single Unit
ZN
Supply Voltage
100 V - 240 V, 50 Hz - 60 Hz
Supported Humidity - Operation (from)
20 %
Supported Humidity - Operation (to)
80 %
Supported Humidity - Storage (from)
10 %
Supported Humidity - Storage (to)
90 %
Supported Temperature - Operation (from)
0
Supported Temperature - Operation (to)
50
Supported Temperature - Storage (from)
-10 °C
Supported Temperature - Storage (to)
60 °C
TCO Certified
No

LCD Panel (Type)
1.04 inches with
LCD Panel
C2 Fine
Projection System
3LCD Technology
Resolution
4K 3840 x 2160, 8.3m pixels, 16:9

Android TV
No
Included Software
Epson Creative Projection
Network Protocol
HTTPS
Network Protocol (Projector)
HTTPS

Warranty (Months)
36 Months Carry-in

Other features
21:9 aspect ratio support
Projector control
Extron XTP
Sealed Light Source Module - Yes
Yes
Sealed Light Source Module - IP5X rated
IP5X rated
Sealed Optical Engine - Yes
Yes
Sealed Optical Engine - IP5X rated
IP5X rated
Security (Visual product)
Kensington lock
Video Colour Modes
Dynamic

Colour Light Output - Lumens
13000 Lumens
Colour Light Output - Luman (economy) in accodance with
9100 Lumens
Colour Light Output Testing Standard
In accordance with ISO 21118:2012
Colour Reproduction (Projector)
Upto 1.07 billion colours
Colour Video Processing
10 Bits Color
Contrast Ratio - Ratio:1
5000000
Contrast Ratio - Absolute black
Absolute black
HDR support
HLG
Keystone Correction Type (Horizontal)
manual
Keystone Correction Angle (Horizontal)
45
Keystone Correction Type (Vertical)
manual
Keystone Correction Angle (Vertical)
30
Laser Lightsource -Durability High
20000 hr
Laser Lightsource -Durability Eco
30000 hr
Light Source (Visual product)
Laser
Native Contrast
3000
Portrait Colour Light Output
13000 lm
Portrait White Light Output
13000 lm
White Light Output - Lumens
9100 Lumens
White Light Output - Lumens (economy) in accodance with
9100 Lumens
White Light Output Testing Standard
In accordance with ISO 21118:2020

Interchangeable Lens
Yes
Lens
Optical
Lens (varies by lens)
n/a
Lens Shift (varies by lens)
varies by lens
Mechanical shutter
Yes
Offset - varies by lens
varies by lens
Projection Distance varies by lens
varies by lens
Projection Distance Wide varies by lens
varies by lens
Projection Distance Wide Tele varies by lens
varies by lens
Projection Lens F Number varies by lens
varies by lens
Projection Lens Focal Length (varies by lens)
varies by lens
Projection Lens Focus
Motorized
Projection Lens Focus (varies by lens)
n/a
Screen Size varies by lens
varies by lens
Standard Lens
Not included
Throw Ratio from
0.34
Throw Ratio to
7.16
Type of Zoom
motorized

Downloads and Support

IP5X certified in accordance with IEC Standard 60529. The IP5X certification is applied to the optical engine and light source module.1

4K (3840 x 2160) is the maximum physical resolution achieved using 4K Crystal Motion technology.2

Energy efficient based on the power consumption data publicly available for comparable market leading products. Reductions in packaging and transportation requirements assumed based on physical product size and weight and/or packaging size and weight data available for comparable market leading products. As of February 2024.3
